Electrical Panels

Eaton

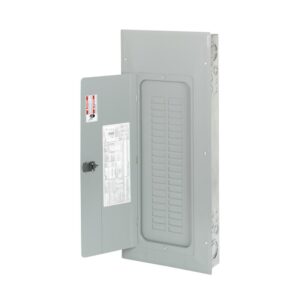

BR-200A, 40 SPACE PANEL

  • Amperage rating: 200A
  • Bus material: aluminum
  • Rated NEMA 1 for indoor use
  • Feed type: bottom or top which allows for straight-in wiring that saves labor and material
  • Interrupt rating: 25 kAIC
  • Mounting: combination
  • Number of circuits: 40
  • Number of spaces: 40
  • Phase: singel-phase
  • “Tangential” center knockout easier installation for conduit applications
  • 2/0 lug easily removable and can be installed in any location on the neutral bar
  • Neutral bus (Strap) is easily removable for sub-panel applications
  • Bonding Z-strap provides easy field conversion for service entrance applications
  • Twin neutral bars minimum 150% neutral capacity
  • Steel back pan provides solid and reliable breaker mounting-single piece design for stability and durability
  • Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
  • Includes: 5-BR120s, 1-BR230 circuit breakers
  • Used with: type BR breakers

Eaton

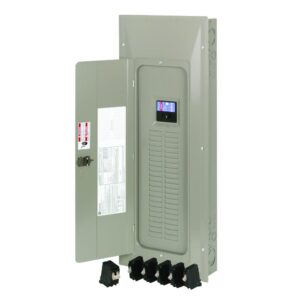

CH-200A 40 SPACE PANEL

  • Amperage rating: 200A
  • Bus material: copper
  • Rated NEMA 1 for indoor use
  • Feed type: bottom or top which allows for straight-in wiring that saves labor and material
  • Interrupt rating: 25 kAIC
  • Mounting: combination
  • Number of spaces: 42
  • Phase: single-phase
  • “Tangential” center knockout easier installation for conduit applications
  • 2/0 lug easily removable and can be installed in any location on the neutral bar
  • Neutral bus (Strap) is easily removable for sub-panel applications
  • Bonding Z-strap provides easy field conversion for service entrance applications
  • Twin neutral bars minimum 150% neutral capacity
  • Steel back pan provides solid and reliable breaker mounting—single piece design for stability and durability
  • 1 piece silver-flashed copper bus – provides superior conductivity, corrosion resistance and durability
  • Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
  • Includes 5-CH120 and 1-CH230 circuit breakers
  • Used with: type CH breakers
